Coating technology for controllable thermal, radar, and EMI signatures
HeiQ Xpectra is a transparent coating technology for multispectral signature management in defense applications. The system addresses thermal, radar, and electromagnetic signatures within a single, adjustable coating platform. Performance can be tuned to deployed conditions without altering the visual appearance of materials.
HeiQ Xpectra can be integrated into new manufacturing processes or applied as a retrofit on textiles, hard surfaces, and selected transparent substrates.

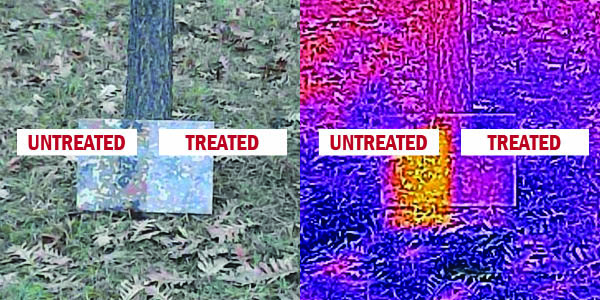

Untreated vs. treated surface under infrared and visible imaging, showing reduced thermal contrast with HeiQ Xpectra.
Advantages for defense and aerospace integration
Multispectral coverage
Manages signatures across NIR, MWIR, LWIR, and radar, with support for EMI shielding across different surfaces.

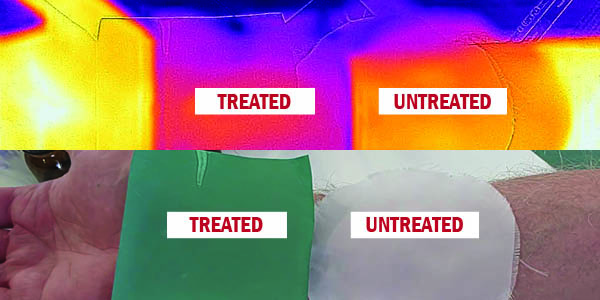

Coated vs. uncoated glass, with a heat source behind the surface

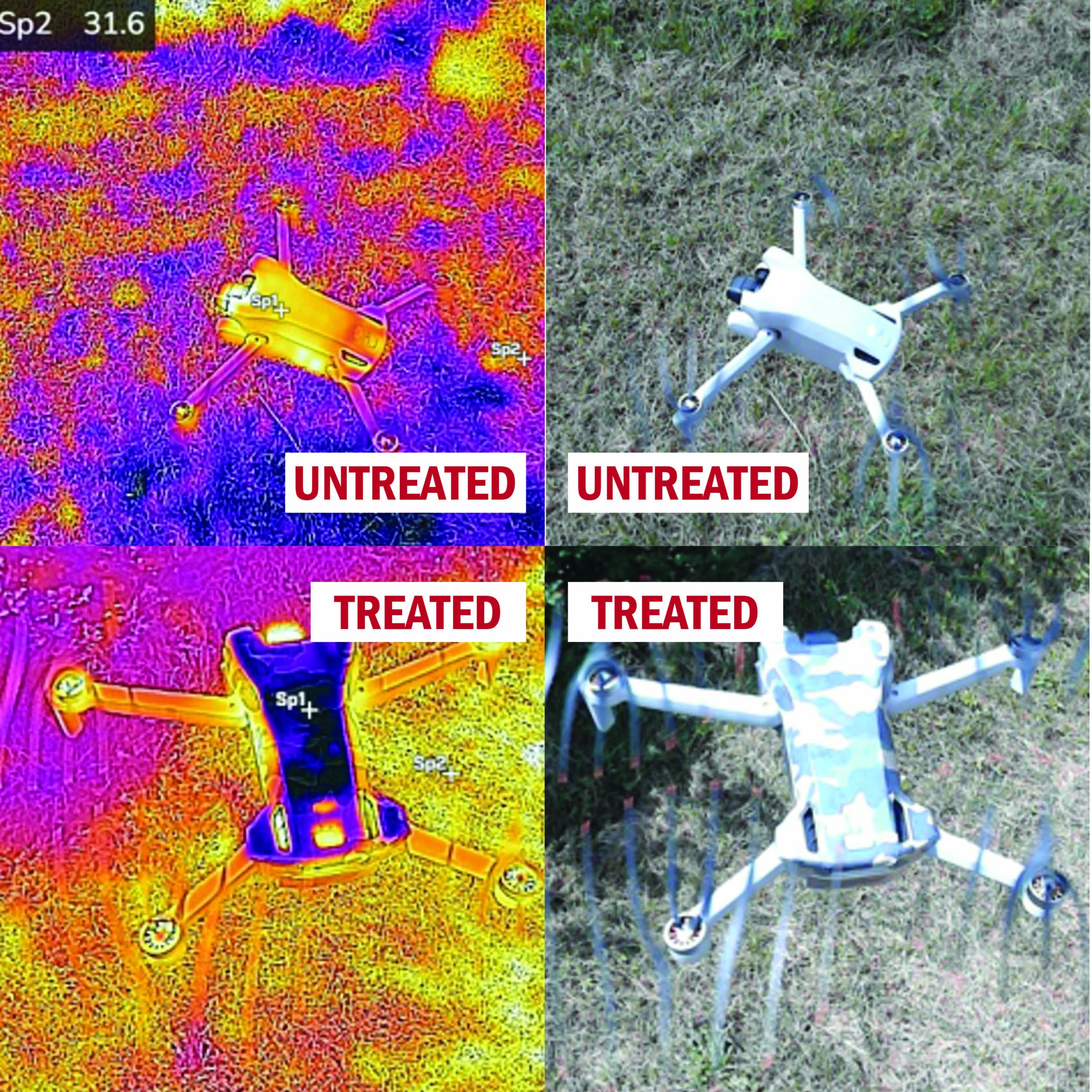

Tunable thermal signature
Across platforms and materials
Retrofit and OEM compatible for hard and flexible surfaces, and suitable for selected transparent substrates where optical transparency is required.

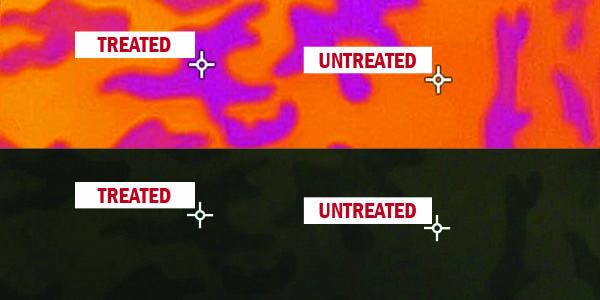

Coated vs. uncoated textile, with body heat behind the material
Explore HeiQ Xpectra for your application
Discuss your requirements with our team to evaluate how HeiQ Xpectra can support signature management across your materials and platforms. Detailed performance data is available under NDA.
Broad application range of HeiQ Xpectra
- Transparent low-E coating for building insulation
– Greenhouses
– Buildings
– Transparent films
- Signature management for thermal camouflage
– Infrared shielding
– Radar shielding
– EMI
- Printed electronics
– Transparent electrodes
– Organic photovoltaics
– Electroluminescence
- Transparent heating
– Active window heating & de-icing
– Back wind screen
– Headlights
TECHNICAL DATA
Available in research quantities (from 50 g), development quantities (from 500 g) and production quantities (from 5 kg).
- Transparent (up to 98% light transmission)
- Applicable through roll-to-roll printing, tampon or screen printing
- Usable on flexible substrates
- Thermoformable without loss in conductivity
- Antistatic protection
- Highly reflective of IR and Radar frequencies
- Type: Dispersion
- Conc./%: 4,0±0,1
- pH: 4-7
- Aspect ratio: ca. 1,000
- Particle size: D90=30-50μm
- Color: Silver grey
